A Comprehensive Guide to Gas Detectors and Their Uses
Introduction
Invisible threats lurk in many workplaces and even public spaces. Hazardous gases can endanger lives, causing health issues, fires, and explosions. Gas detectors are essential safety devices that detect these gases and provide timely warnings. This blog post will explore the different types of gas detectors and their uses, helping you understand how to choose the right one for your needs.
What are Gas Detectors?
Gas detectors are electronic devices that sense the presence of specific gases in the air. When a dangerous gas concentration is detected, the device alerts users through audible alarms, visual warnings, or both. These devices are crucial in various industries, including oil and gas, chemical manufacturing, mining, and firefighting.
Types of Gas Detectors
Gas detectors can be categorized based on several factors:
- Sensing Technology
- Type of Gas Detected
- Portability
Gas Detectors by Sensing Technology
The sensing technology determines how a gas detector identifies and measures gas concentrations. Here are some common types:
Electrochemical
Electrochemical sensors use a chemical reaction between the target gas and an electrode to produce an electrical signal proportional to the gas concentration.
- Gases Detected: Carbon monoxide (CO), hydrogen sulfide (H2S), oxygen (O2), and other toxic gases.
- Applications: Widely used in industries like chemical, manufacturing, and wastewater treatment.
- Advantages: Accurate, reliable, and relatively cost-effective.
- Disadvantages: Sensors have a limited lifespan and can be affected by temperature and humidity.
Photoionization (PID)
PID sensors use ultraviolet (UV) light to ionize gases. The resulting ions are measured to determine gas concentration.
- Gases Detected: Volatile organic compounds (VOCs) such as benzene, toluene, and xylene.
- Applications: Used in industries like oil and gas, paint and coatings, and environmental monitoring.
- Advantages: Highly sensitive and can detect a wide range of gases.
- Disadvantages: Less selective and can be affected by humidity.
Infrared (IR)
IR sensors use infrared light to detect gases. Different gases absorb specific wavelengths of IR light, and the detector measures this absorption.
- Gases Detected: Carbon dioxide (CO2), methane (CH4), and other hydrocarbons.
- Applications: Used in industries like oil and gas, mining, and wastewater treatment.
- Advantages: Highly selective, long lifespan, and resistant to poisoning.
- Disadvantages: Can be more expensive than other types.
Catalytic Bead
Catalytic bead sensors detect combustible gases by measuring the heat produced when the gas combusts on a catalytic surface.
- Gases Detected: Combustible gases like methane, propane, and butane.
- Applications: Used in industries like oil and gas, mining, and chemical processing.
- Advantages: Reliable and relatively inexpensive.
- Disadvantages: Can be poisoned by certain substances, requiring regular calibration.
Gas Detectors by Gas Type
Gas detectors are also classified based on the specific gases they are designed to detect:
Combustible Gas Detectors
These detectors measure the concentration of flammable gases in the air and alert users when the concentration reaches a dangerous level, known as the Lower Explosive Limit (LEL).
Toxic Gas Detectors
These detectors measure the concentration of toxic gases, which can be harmful or fatal even at low levels.
Oxygen Deficiency/Enrichment Detectors
These detectors measure the oxygen level in the air. Low oxygen levels can cause asphyxiation, while high levels can increase the risk of fire.
Gas Detectors by Portability
Gas detectors can also be classified as either portable or fixed:
Portable Gas Detectors
These are lightweight, battery-operated devices worn by workers for personal monitoring.

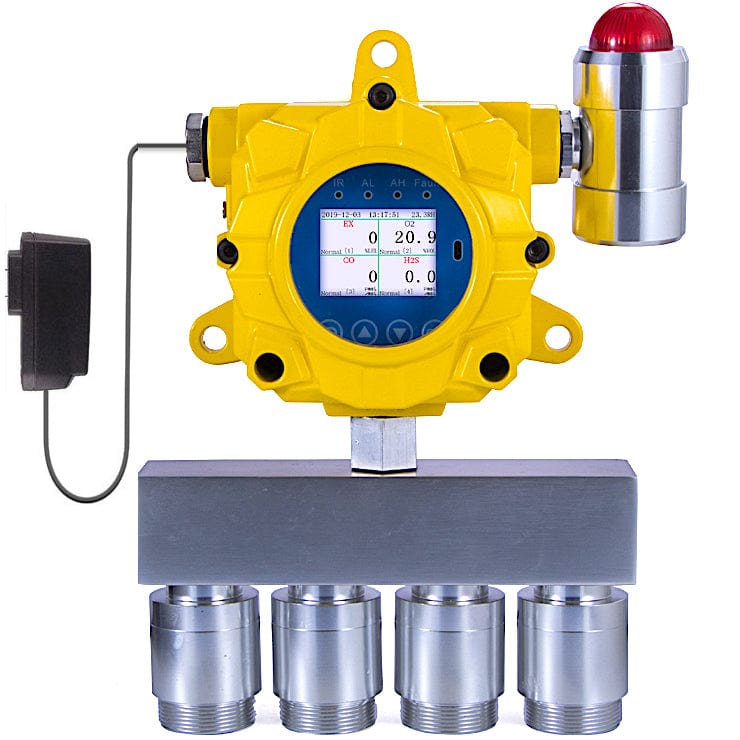

Fixed Gas Detectors
These are permanently installed in a specific location to provide continuous monitoring of a defined area.
Choosing the Right Gas Detector
Selecting the appropriate gas detector is crucial for ensuring safety. Consider the following factors:
- Types of gases present: Identify all potential hazardous gases in the environment.
- Concentration levels: Determine the expected gas concentrations and exposure limits.
- Environmental conditions: Consider temperature, humidity, and other environmental factors.
- Portability requirements: Decide whether personal or area monitoring is needed.
- Budget: Gas detectors vary in price depending on their features and technology.
Calibration and Maintenance
Regular calibration and maintenance are essential to ensure the accuracy and reliability of gas detectors. Follow the manufacturer’s instructions for calibration, sensor replacement, and other maintenance procedures.
Conclusion
Gas detectors are vital tools for protecting workers and preventing accidents caused by hazardous gases. Understanding the different types of gas detectors and their uses can help you make informed decisions and ensure a safe environment.
